It’s amazing how often the most obvious things go unnoticed. As an example, consider a bell switch. How many people stop what they’re doing to consider how a bell switch functions? How often do you use this electronic device daily? Several times a day. The ingenuity with which this machine uses a fundamental principle of electromagnetism is fascinating. The pinnacle of scientific clarity! The article explains how a bell switch operates.

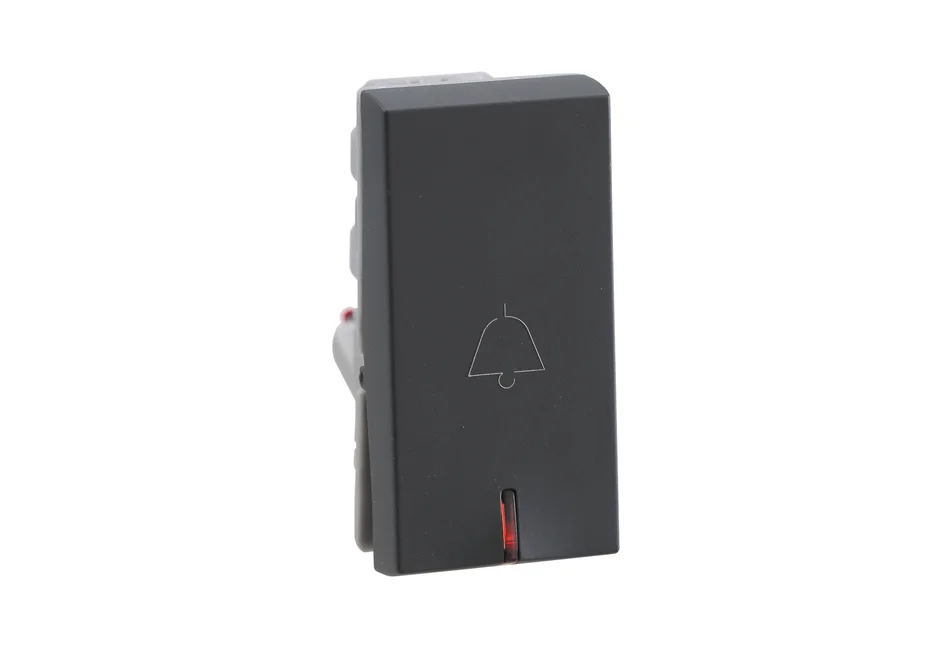

The magnetic motor is the most crucial component of a Legrand Eshop bell switch. A standard electromagnet is the basis for the magnetic motor. You know that a magnetic field is produced when electricity is passed through a coil of wire wrapped around magnetic material. For maximum magnetic field amplification, coil the wire as tightly as possible. Any magnetic material will undergo significant transformations in close proximity to this magnetic field. This electromagnetism-generated polar orientation means an iron object placed in the field will be drawn toward the magnetic field.
Pressing the bell switch button closes a circuit, and electricity flows through the electromagnet.
The 120 V current goes through a transformer that reduces it to 10 V, making it usable for the device. The electromagnetic wire winding then receives the current. In turn, this generates a magnetic field that powers a noise generator. Many different sound generators are available to create a wide range of sounds. For improved audio quality, bell switches accessories are available. Here are the most common mechanisms for producing sound.
An electromagnet with two ends connected to the electrical circuit makes up the buzzer, the simplest bell switch mechanism. An electrical circuit is established between one end of the winding and a metal contact adjacent to a revolving contact arm. The contact arm is a lightweight metal arm with one end resting against the contact point and the other end anchored and connected to the electrical circuit.
Pressing the bell switch completes electrical circuits, creating an electromagnetic field. The magnetic field pulls the iron bar away from the contact arm to protect it. Disconnecting the contact arm disables the electromagnet. The contact arm springs back. It restores circuit continuity and electrical current flow. Repetition of a magnetic field occurs.
The contact arm hits the magnet and fixed contact many times per second, making noise.
The bell operates on the same principle, except that its clapper, rather than a moving arm, strikes a stationary metal disc. Like the popular game “Buzzer,” this procedure involves a swinging arm and repeated claps on a bell.
Pushing a doorbell’s button completes an electrical circuit, allowing the bell to ring. A bell or chime will sound when this occurs. The majority of contemporary doorbells use low-voltage electricity to power this circuit.
The chimes of older doorbells were mechanical, but the electronic tones of newer ones are much more convenient. The primary purpose of these devices is to notify the home’s occupants of a visitor. The Legrand Eshop dimmer price is something you must know.
